12-Channel Bluetooth Studio Mixer – USB Recording, 7-Band EQ, 48V Power<Pyle Outlet

The Pyle 12-Ch. Bluetooth Studio Mixer – DJ Controller Audio Mixing Console System – DJ & Studio Console Mixer System – Multi 12-Channel Audio Source Mixing – Built-in Bluetooth Wireless Receiver – FX (Analog Effects) & 16 Bit DSP processor – Direct-to-Computer Connect & Sound Record Ability – 7-Band EQ – 32-Bit Dual Engine DSP – 24-Bit ADC DAC Converter – FX Configuration Adjustment Controls – Rotary Adjustment Knobs & LED Indicator Lights – MP3 Digital Audio File Compatibility – USB Flash Drive Reader – USB Port for Desktop Connection – Connect & Stream Audio from External Devices – (2) 1/4’’ (L/R) MAIN Outputs.

Features:

• DJ & Studio Console Mixer System
• Multi 12-Channel Audio Source Mixing
• Built-in Bluetooth Wireless Receiver
• FX (Analog Effects) & 16 Bit DSP processor
• Direct-to-Computer Connect & Sound Record Ability

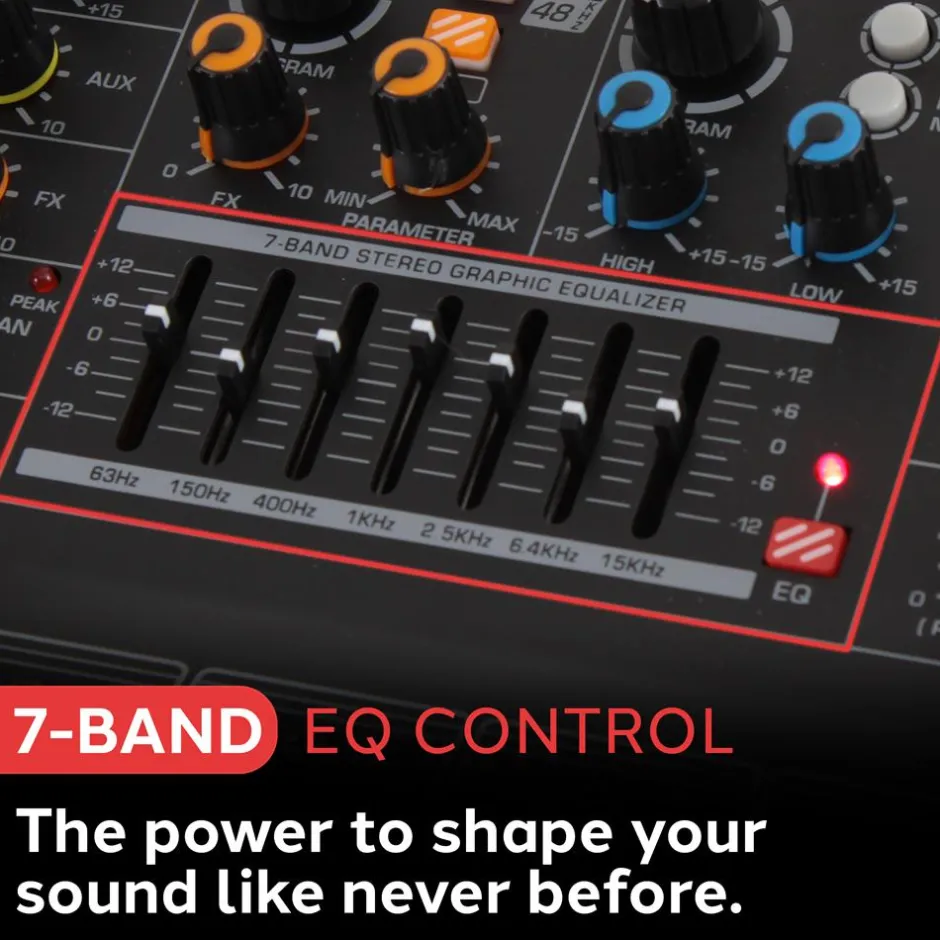

• 7-Band EQ
• 32-Bit Dual Engine DSP
• 24-Bit ADC DAC Converter
• FX Configuration Adjustment Controls
• Rotary Adjustment Knobs & LED Indicator Lights
• MP3 Digital Audio File Compatibility
• USB Flash Drive Reader
• USB Port for Desktop Connection
• Connect & Stream Audio from External Devices
• (2) 1/4’’ (L/R) MAIN Outputs
• (4) XLR/14’’ Combo Audio LINE/Microphone Inputs
• (2) Pair RCA (L/R) Inputs
• (2) Pair 1/4’’ Mono + Stereo Inputs
• 1/4’’ Send + Return Inputs
• 1/4’’ Headphone Jack
• Stereo Level Fader/Slider
• Output Signal Level Indication
• BUS Audio Control, Sound Routing
• PAD Channel Source Input Switch
• Independent Channel Input Audio Configuration
• Gain, High, Mid, Low, FX/Send, Level, Base + Tone Adjustment
• +48V Phantom Power Control
• Power ON/OFF Switch
• Used for Professional Studio Applications & On-Stage Performances

What’s in the Box:

• Bluetooth Studio Mixer
• Power Adapter Cable, 3-Pin

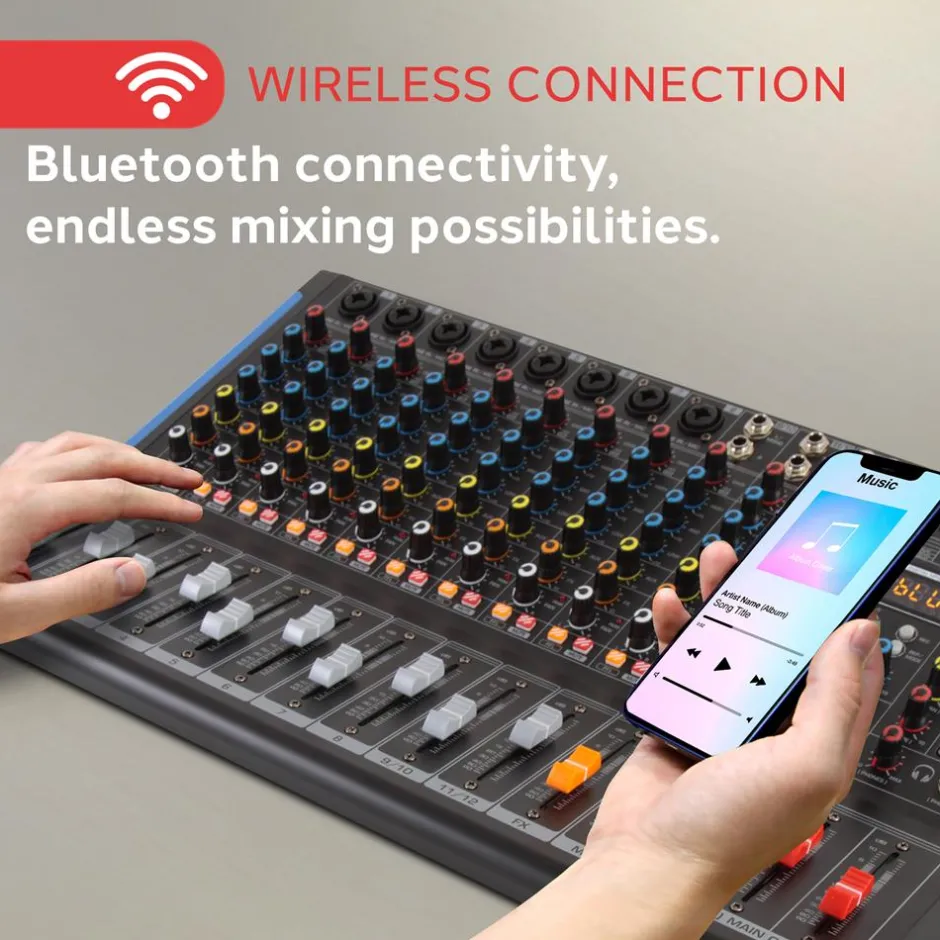

Wireless Bluetooth Connectivity:

• Hassle-Free Audio Streaming Ability
• Works with All of Today’s Latest Devices
• (Smartphones, Tablets, Laptops, Computers, etc.)
• Bluetooth Network Name: ‘KG-08A’
• Bluetooth Version: 2.0
• Wireless Range: 15’+ ft.

Technical Specs:

• Input Mixer Channels: 12-Ch. (+ FX/Headphones)
• Mic Input: Sensitivity/Impedance: 1.5mV/750 Ohm
• Input Frequency Response: 20Hz-20kHz, +/-3dB
• Input Distortion: 0.03%, 1kHz/150mV Input
• Channel GAIN Adjustment: +20/+64 (-6/+38)
• HIGH Gain: +/-15 dB, 12kHz Frequency Shelving
• MID Gain: +/-15 dB, 2.5kHz Frequency Shelving
• LOW Gain: +/-15 dB, 80kHz Frequency Shelving
• HIGH/MID/LOW Adjustment: -15/+15dB
• Stereo Output Level Meter: 12-Segment (-30, -20, -10, -7, -4, -2, 0, +2, +4, +7, +10, CLIP)
• PAD Input Channel Adjustment: 26dB
• Peak CLIP Level: < 3dB
• Digital Audio File Compatibility File-Types: MP3, MP4, WMA, WAV
• Phantom Power Voltage: +48V
• Power Supply: 100/240V (+/-15V DC Power Adapter)

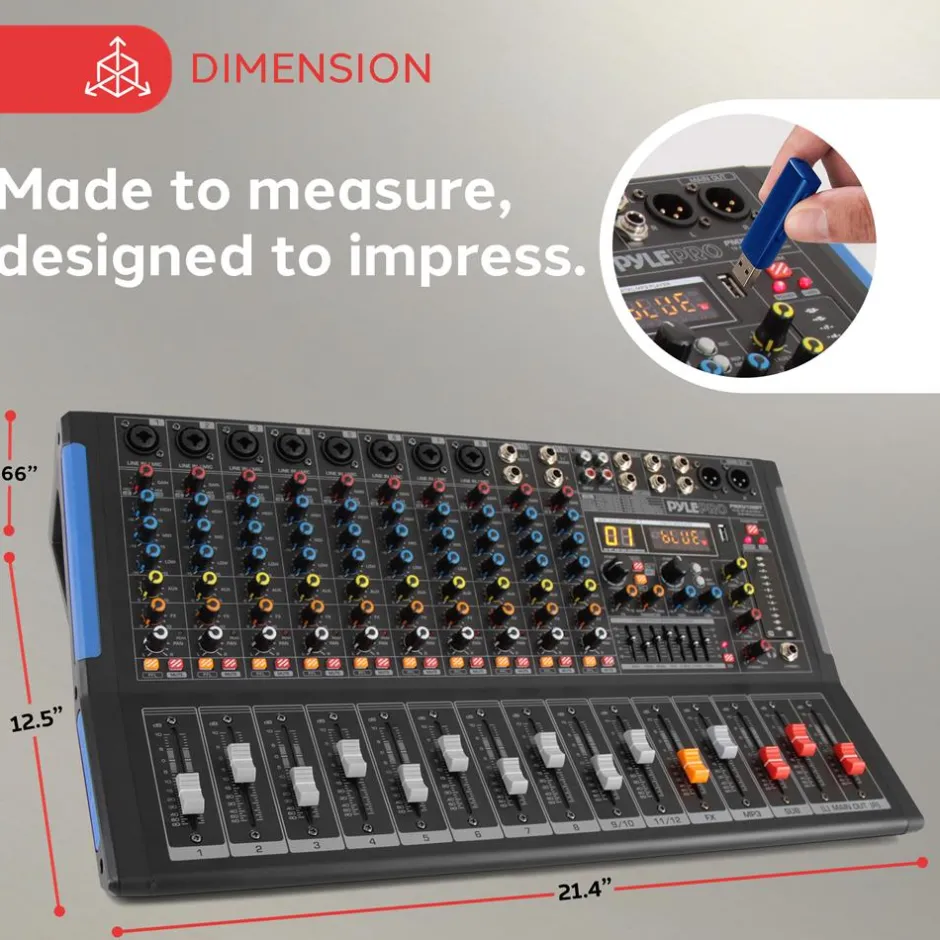

• Dimensions (L x W x H): 21.4’’ x 12.5’’ x 3.66’’ -inches

Bluetooth Studio Mixer

Power Adapter Cable, 3-Pin
